SKU LDD-IP150/24(N)

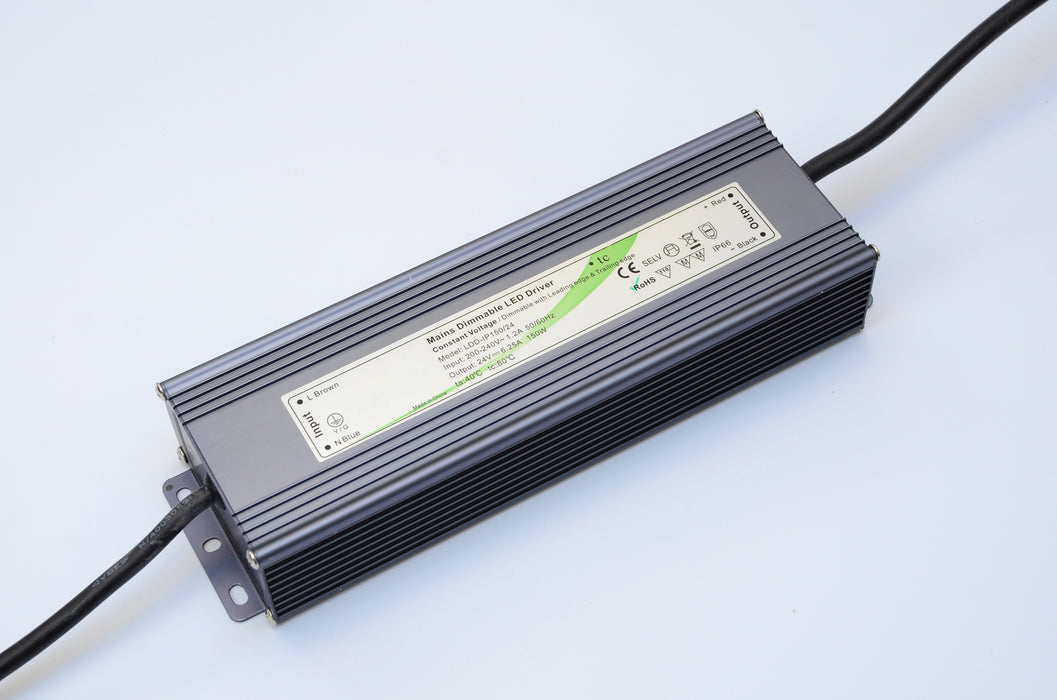

LDD-IP150/24(N)
by Teucer LED
150w Mains Dimmable LED Driver
Technical specification
| Order Code | LDD-IP150/24(N) | |
| Output | Rated Power | 150W |
| Rated Current | 6.25A | |
| Output Voltage | 24V DC | |
| Voltage Tolerance | ±0.5V | |
| Input | Voltage Range | 200~240VAC |
| Frequency Range | 47~63Hz | |
| Efficiency (Typ) | 86% | |
| Power Factor | PF≥0.97/200-240VAC(Full loading) | |
| AC Current (Typ) | 1.2A | |
| Inrush Current (Max) | 55A (50% Ipeak Twidth=220μs) 230VAC | |
| Protection | Overload | ≤ 120% |
| Short circuit | Recovers automatically after condition is removed | |
| Environment | Working Temp | -40~+60°C |
| Working Humidity | 20~90%RH, non-condensing | |
| Ingress Protection | IP66 waterproof | |
| Storage Temp / Humidity | -40~+80°C, 10~95%RH | |
| Safety & EMC | Safety Standards (LVD) | EN 61347-2-13:2014/A1:2017, EN61347-1:2015,EN 62493:2015, VDE 0710-14:1982 |
| Withstand Voltage | I/P-O/P:3.75KVAC | |
| Isolation Resistance | I/P-O/ P:100MΩ / 500VDC / 25°C / 70%RH | |
| EMC Emission and Immunity | EN 55015:2013/A1:2015, EN 61547:2009, EN 61000-3-2:2014, EN 61000-3-3:2013 | |
| Dimming | Dimming Type | PWM dimming, PWM frequency ~ 400Hz |
| Minimum Load to achieve optimum dimming of 5-100% | 10%, 15w | |
| Dimmer | Leading Edge and Trailing Edge | |
| Note | Consult the Derating Curve for load guidance. | |
| Mechanical | Size | 256x78x47mm (L×W×H) |
| Weight | 1.45Kg |
Original price
£132.00
-
Original price
£132.00
Original price
Incl. VAT
£158.40
Excl. VAT
£132.00
£132.00
-
£132.00
Current price
