SKU LD-IP30/24

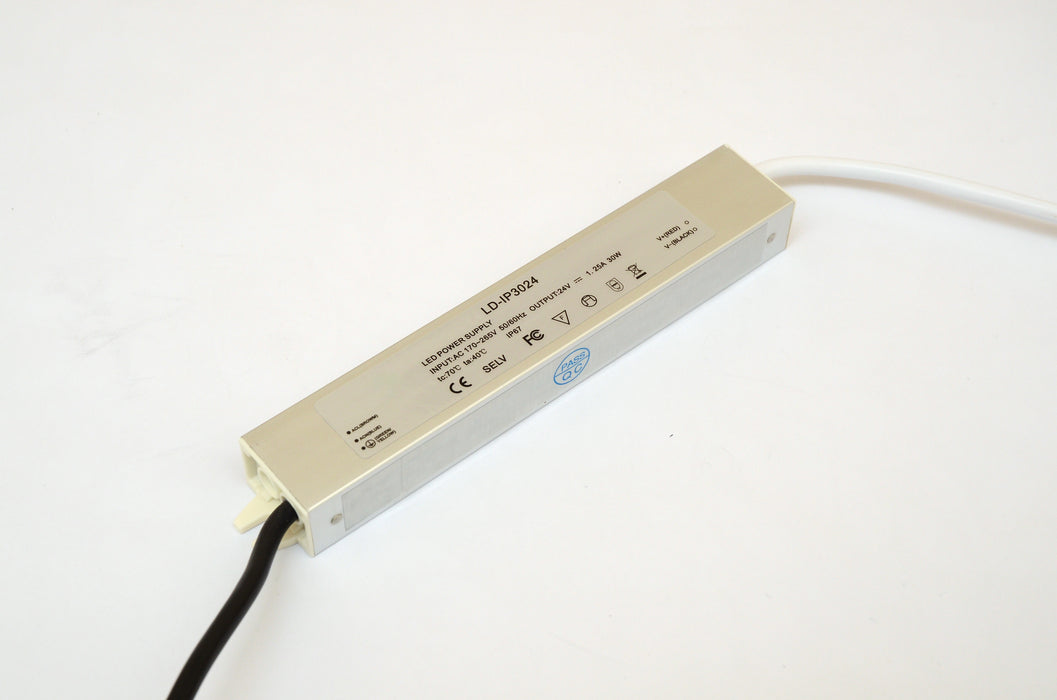

LD-IP30/24
by Teucer LED
Teucer 30 watt LED driver is 24VDC and IP rated. All drivers include features such as short circuit, overload and thermal protection thus ensuring a safe installation and a durable product.
Technical specification
| Order code | LD-IP30/24 | |
| Output | Rated power | 30W |
| Rated current | 1.25A | |
| Output voltage | 24V DC | |
| Voltage tolerance | ±0.5V | |
| Input | Voltage range | 170~265VAC |
| Frequency range | 47~63Hz | |
| Efficiency (Typ) | 84% | |
| AC current (Typ) | 0.22A | |
| Inrush current (Max) | 30A Max (50% Ipeak Twidth=485μs) 230VAC | |
| Protection | Overload | ≤ 120% |
| Short circuit | Recovers automatically after condition is removed | |
| Environment | Working temp | -30~+50°C |
| Working humidity | 20~90%RH, non-condensing | |
| Ingress protection | IP67 waterproof | |
| Storage temp / humidity | -40~+80°C, 10~95%RH | |
| Safety & EMC | Safety standards | EN61347-1; EN61347-2-13,SELV, IP67 approved |
| Withstand voltage | I/P-O/P:3KVAC; I/P-FG:3KVAC; O/P-FG:0.5KVAC | |
| Isolation resistance | I/P-O/ P:150MΩ / 500VDC / 25°C / 70%RH | |
| EMC emission | EN 55015:2013 | |
| EMC immunity | EN 61547:2009 | |
| Other | Dimension | 160×30×20mm(L×W×H) |
| Weight | 0.20kg | |
