SKU LDDA-IP150/24

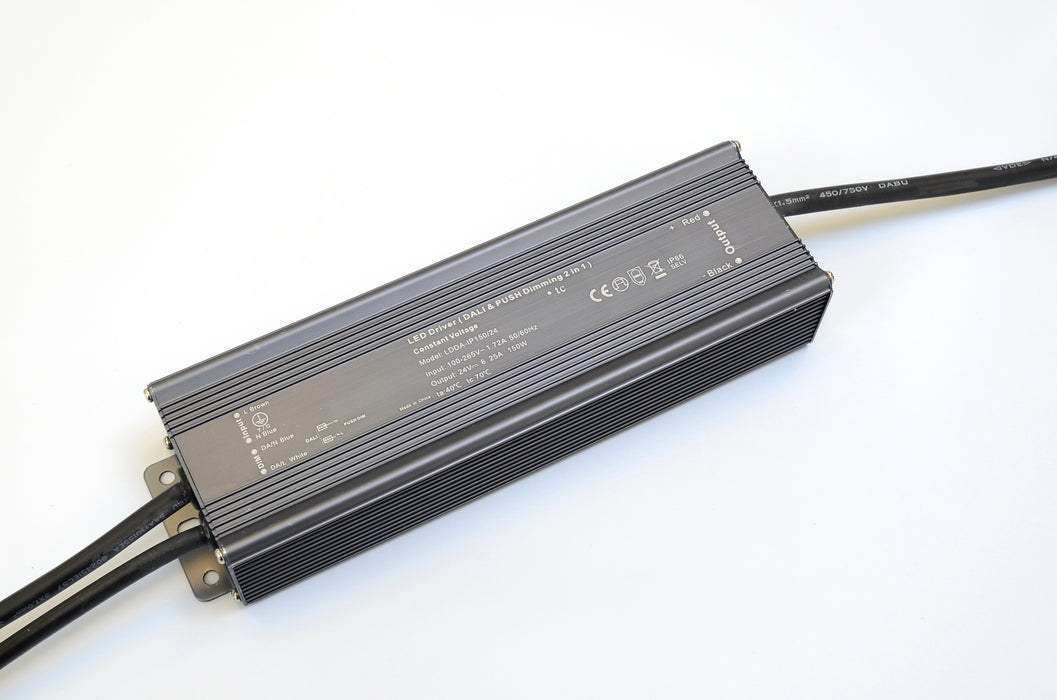

LDDA-IP150/24
by Teucer LED
150w DALI Dimmable LED Driver
Technical specification
| Order Code | LDDA-IP150/24 | |
| Output | Rated Power | 150W |
| Rated Current | 6.25A | |
| Output Voltage | 24V DC | |
| Voltage Tolerance | ±0.5V | |
| Voltage Regulation | ±0.5% | |
| Load Regulation | ±2% | |
| Input | Voltage Range | 100~265VAC |
| Frequency Range | 47~63Hz | |
| Efficiency (Typ) | 88.2% at 230V AC (Full loading) | |
| Power Factor (Typ) | 0.97 at 230V AC (Full loading) | |
| THD (Typ) | <20% at 230 V AC (Full loading) | |
| AC Current (Max) | 1.72A | |
| Inrush Current (Typ) | 56A (50% Ipeak Twidth=640μs) at 230V AC | |
| Leakage current | <0.5mA | |
| Protection | Overload | ≤ 120% |
| Short circuit | Recovers automatically after condition is removed | |
| Over temperature | 100°C ±10°C Recovers automatically after cooling | |
| Protection Class | I | |
| Environment | Working Temp | -40~+60°C (refer to the derating curve) |
| Working Humidity | 20~95%RH, non-condensing | |
| Ingress Protection | IP66 waterproof | |
| Storage Temp / Humidity | -40~+80°C, 10~95%RH | |
| TEMP. coefficient | ±0.03%/°C(0-50°C) | |
| Vibration | 10~500Hz, 5G 10 min./1 cycle, period for 60min. each along X, Y, Z axes |
